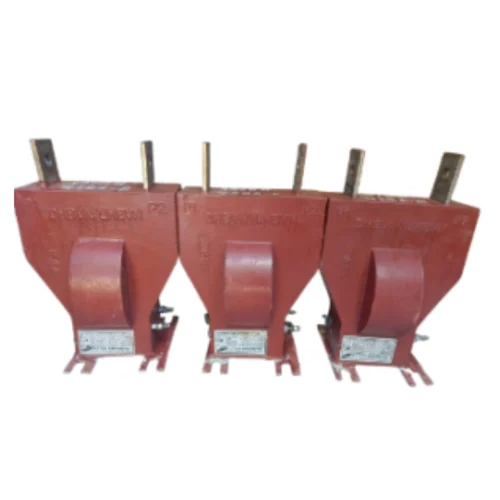

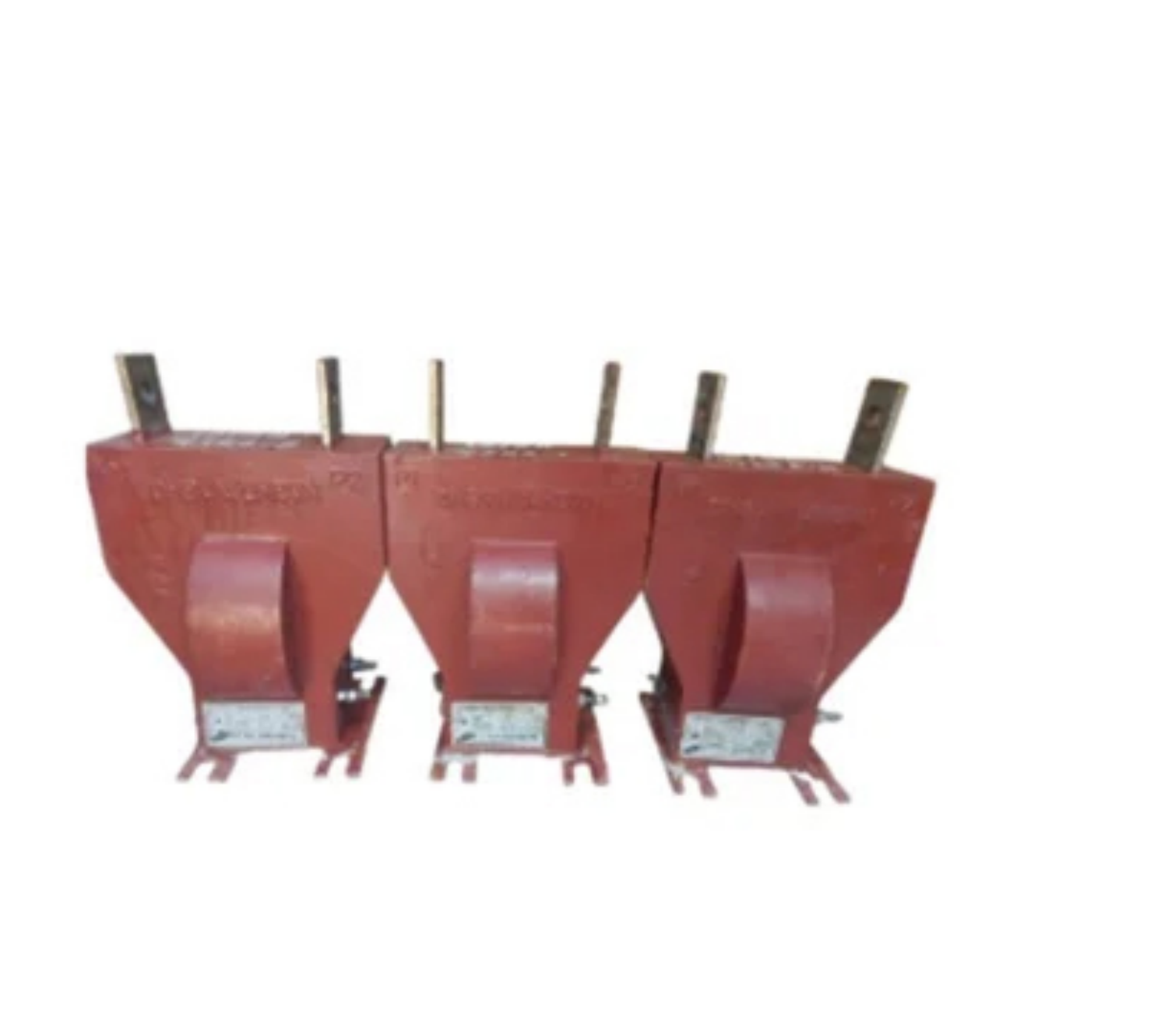

Eltech 11 KV HTCT Ratio 100 5A Class 0.2S Current Transformer

Eltech 11 KV HTCT Ratio 100 5A Class 0.2S Current Transformer Specification

Cooling Type
Dry Cooled

Load Loss
requirement based

Voltage Booster Type
Dry

Dimension (L*W*H)
requirement based Yard

Frequency (MHz)
50 Hertz (HZ)

Usage
Current Transformer

Rated Voltage
220-240 Volt (V)

Power Scope
11kV

Phase
requirement based

Rated Current
10 Ampere (amp)

Material
requirement based

Conductor
requirement based

Features
Good quality

Eltech 11 KV HTCT Ratio 100 5A Class 0.2S Current Transformer Trade Information

Minimum Order Quantity
1 Pack

FOB Port
requirement based

Payment Terms
Cash in Advance (CID)

Supply Ability
500 Packs Per Month

Delivery Time
7 Days

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
no pack

Main Export Market(s)
Asia

Main Domestic Market
All India

About Eltech 11 KV HTCT Ratio 100 5A Class 0.2S Current Transformer

- DHBVN likely refers to Dakshin Haryana Bijli Vitran Nigam, a utility company based in Haryana, India. The transformer may be designed or certified specifically for use in areas served by DHBVN, which provides electricity to southern Haryana, including Gurgaon.
- It may also indicate that this transformer model complies with the standards or specifications required by DHBVN for metering and protection purposes in their electrical networks.
Applications:
- Current Measurement: Used for accurate measurement of high current in 11 kV distribution systems.
- Energy Metering: Suitable for energy metering applications, especially for billing purposes in large industrial or commercial settings.
- Protection: Works alongside protection relays to detect overcurrent conditions, helping to safeguard equipment from potential damage due to excessive current.
- Power Distribution Networks: Ideal for use in electrical substations and switchgear panels, where high-precision measurement and protection are essential.

Technical Details

Precision Engineered for Electrical Safety

The Eltech 11 KV HTCT current transformer assures highly accurate current measurement, promoting both operational safety and system efficiency. Its Class 0.2S accuracy standard and adaptable construction can be tailored as per specific project demands, ensuring precise metering and protection against overcurrent risks.

Dependable Performance Across Industrial Settings

Tailored for flexible industrial utility, this transformer's dry-cooled, single-phase design facilitates stable operation under various load conditions. With options for customization on size, materials, and load loss, it seamlessly integrates into electrical networks, serving diverse sectors across India.

FAQ's of Eltech 11 KV HTCT Ratio 100 5A Class 0.2S Current Transformer:

Q: How is the Eltech 11 KV HTCT Ratio 100 5A Current Transformer typically used?

A: This current transformer is used for accurate measurement and monitoring of electrical currents in high-voltage (11kV) networks. It's commonly applied in industrial, utility, or substation environments to support protection relays and metering equipment, thereby enhancing system safety and energy management.

Q: What benefits does the dry-cooled, single-phase design offer?

A: The dry-cooled, single-phase design enhances operational safety by eliminating oil-based cooling, reducing maintenance needs, and minimizing environmental risks. This approach allows for reliable function and easier installation in diverse locations, even where space or ventilation may be limited.

Q: When should I select requirement-based specifications for dimensions or materials?

A: Requirement-based specifications should be chosen when existing installation spaces, environmental conditions, or utility standards call for tailored transformer attributes. This ensures optimal performance, compatibility, and easy integration within your unique electrical setup.

Q: Where is this current transformer most suitably installed?

A: The Eltech 11 KV HTCT is ideal for installation in industrial plants, substations, and commercial electrical panels. Its flexible design adapts to both indoor and outdoor environments, particularly in systems utilizing 220-240V and requiring 11kV power scope.

Q: What is the process for maintaining this current transformer?

A: Since it utilizes a dry-cooled design, regular visual inspections for dust accumulation, connection integrity, and physical damage are typically sufficient. It's advisable to check calibration periodically to maintain Class 0.2S accuracy and consult manufacturer guidelines for any specific maintenance routines.

Q: How does the Class 0.2S accuracy contribute to overall system efficiency?

A: The Class 0.2S accuracy ensures minimal error in current measurement, which is crucial for precise billing, reliable protection, and energy management. This high level of precision supports optimal system performance, helping operators avoid costly discrepancies or faults.
