RAYCHEM 11KV 3C*50SQMM INDOOR TERMINATION KIT

RAYCHEM 11KV 3C*50SQMM INDOOR TERMINATION KIT Specification

Core Number
3

Features
Polished

Rated Voltage
11 Volt (V)

Usage & Applications
Industrial

Phase
Single

Color
Black

Size
240 sq mm

RAYCHEM 11KV 3C*50SQMM INDOOR TERMINATION KIT Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
500 Pieces Per Month

Delivery Time
5 Days

Main Domestic Market
All India

About RAYCHEM 11KV 3C*50SQMM INDOOR TERMINATION KIT

A Raychem 11kV, 3-core x 50 sq. mm indoor termination kit is an engineered set of components used to connect a medium voltage armored power cable to electrical equipment like switchgear or transformers inside a building. Its primary function is to provide a safe, reliable, and durable connection by managing electrical stress and protecting against environmental factors.

Technical Specifications

Manufacturer: Raychem (a brand of TE Connectivity), known for its polymer and heat-shrink technology.
Voltage Rating: 11kV (11,000 Volts), suitable for medium voltage (MV) electrical networks.
Cable Type: Designed for a 3-core (3C) armored or unarmored cable. This means the main cable contains three separate insulated conductors.
Conductor Size: Fits a cable with a conductor cross-sectional area of 50 sq. mm ( $50 mm^{2}$ ).
Application Environment: Indoor use only. It's designed for controlled environments, protected from direct rain, UV radiation, and heavy pollution.

Kit Components and Function

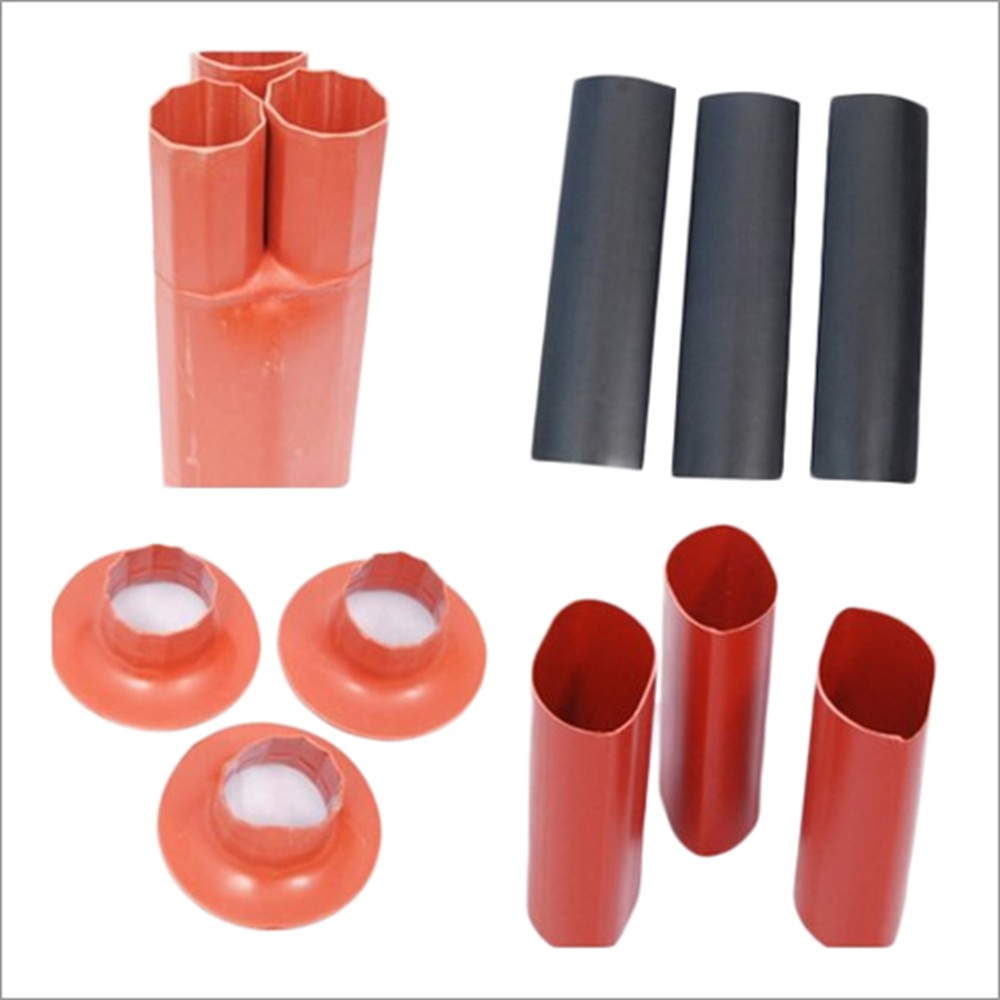

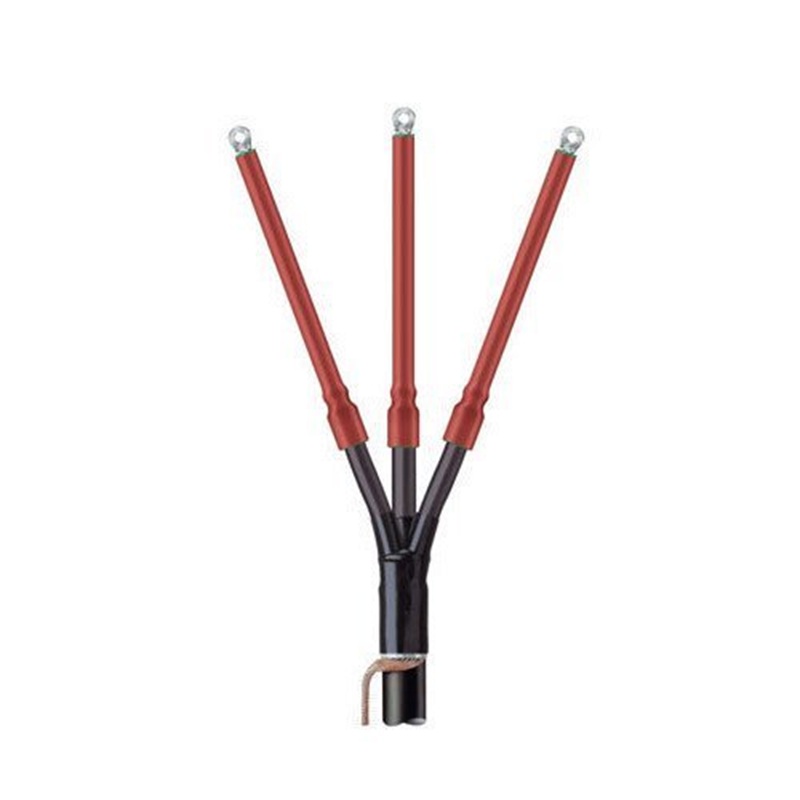

An indoor termination kit contains several pre-engineered, heat-shrinkable components that are applied to the prepared end of the cable. While exact contents can vary slightly, a typical kit includes:

Heat-Shrink Breakout Boot: A 3-fingered component that seals the point where the three individual cores exit the main cable's outer jacket. This prevents moisture ingress and provides mechanical protection.
Stress Control Tubing: This is the most critical component. When the cable's outer metallic screen is removed, it creates a point of high electrical stress. This tubing is applied over the core insulation and screen cutback point to smooth out the electrical field, preventing electrical discharge and insulation breakdown.

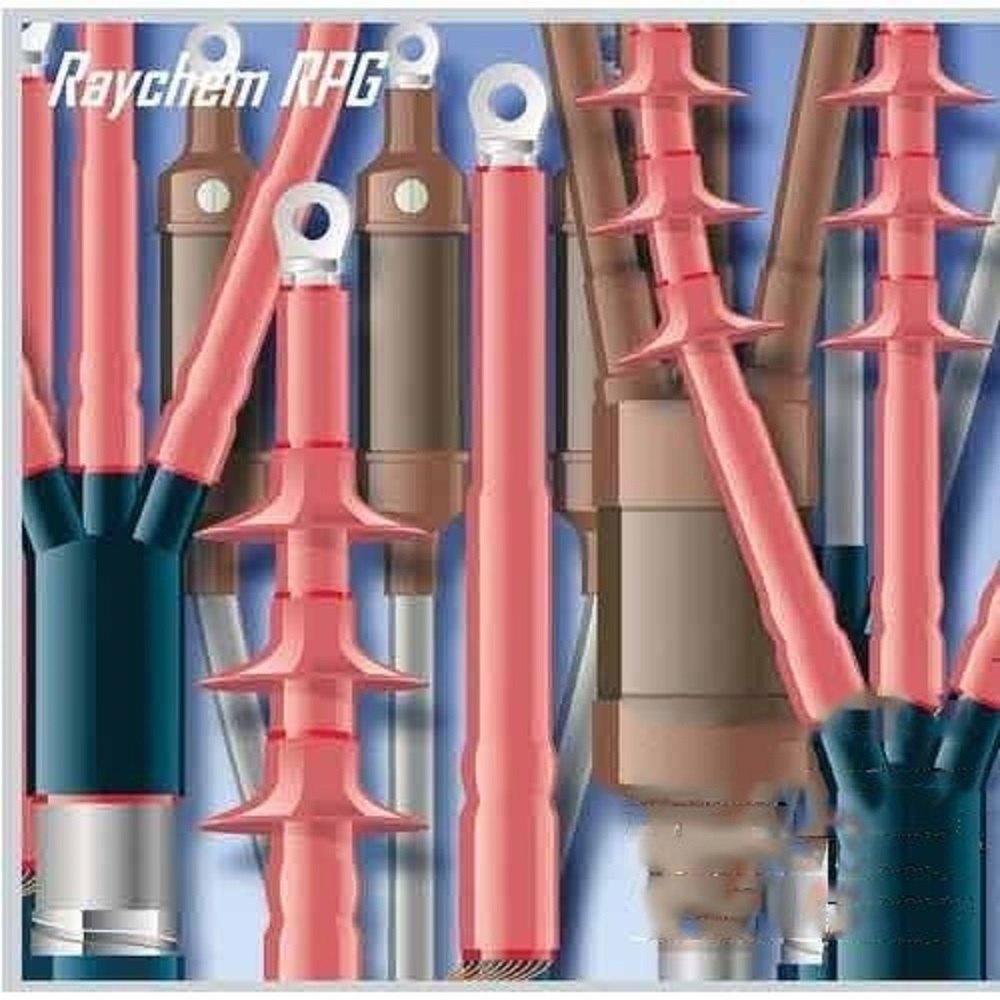

Non-Tracking Insulating Skirts/Sheds (for Indoor Kits): These are red, heat-shrinkable tubes applied over each of the three cores. They provide insulation, protect against flashover between phases and to the ground, and are made from a "non-tracking" material that resists the formation of conductive carbon paths on its surface.
Sealing Mastic: Various sealants and mastics are included to fill voids and ensure a moisture-proof seal at the breakout and lug ends.
Cable Lugs: High-quality crimp lugs are usually included to terminate the conductors onto the equipment's busbars. These are not always standard and may need to be ordered separately based on the specific stud size.

Key Features and Benefits

Reliability: Raychem's heat-shrink technology provides excellent insulation, long-term performance, and high reliability in MV networks.
Ease of Installation: The heat-shrink components are straightforward to install with a standard heat gun, reducing installation time and potential errors.
Compact Design: The termination has a slim and compact profile, making it suitable for use in confined spaces like modern switchgear panels.
Superior Electrical Performance: The stress control system effectively manages electric fields, ensuring safe operation and preventing premature failure of the termination.

Reliable Termination Kit for Industrial Use

RAYCHEM's 11KV 3C*50SQMM indoor termination kit guarantees secure and long-lasting cable terminations for high-voltage applications. Its superior build quality and thoughtful design make it suitable for a variety of industrial set-ups where safety and endurance are paramount.

Designed to Meet Stringent Standards

This kit is manufactured to stringent industry standards in India, providing consistent performance and safety. The polished finish and durable components enhance its lifecycle, reducing maintenance needs and operational downtime for your electrical systems.

FAQ's of RAYCHEM 11KV 3C*50SQMM INDOOR TERMINATION KIT:

**Q: How should the RAYCHEM 11KV 3C*50SQMM indoor termination kit be properly installed?**

A: To ensure optimal performance, the termination kit should be installed by a qualified technician following the manufacturer's detailed instructions. Each step-stripping, assembling, and sealing-must be conducted precisely, with all components fitted securely to the cable cores.

Q: What makes this termination kit suitable for industrial applications?

A: This kit is manufactured with high-grade materials, has a polished finish for enhanced longevity, and is capable of handling 11 kilovolts, making it reliable and safe for challenging industrial uses. Its robust design reduces failures and ensures long-term efficiency.

**Q: When should you use the RAYCHEM 11KV 3C*50SQMM indoor termination kit?**

A: The kit should be used when terminating three-core, 50 sq mm cables in indoor settings requiring up to 11KV voltage rating, particularly in industrial electrical installations to ensure effective and safe connections.

**Q: Where can the RAYCHEM 11KV 3C*50SQMM termination kit be sourced?**

A: It is widely available through authorized distributors, manufacturers, suppliers, and traders across India. Purchasing from a certified source ensures authenticity and access to genuine after-sales support.

Q: What is the process involved in using this termination kit?

A: The installation process includes stripping the cable to the required length, fitting the termination accessories to each core, securing the terminals, and ensuring all seals are properly achieved to prevent moisture ingress and maintain insulation integrity.

Q: What are the main benefits of using the RAYCHEM termination kit in your facility?

A: Key advantages include superior safety, high durability, and easy installation. These features reduce maintenance costs, downtime, and risk of electrical faults, ultimately enhancing overall operational security in industrial settings.
