COMPAQ 11KV 3C*185SQMM INDOOR TERMINATION KIT

COMPAQ 11KV 3C*185SQMM INDOOR TERMINATION KIT Specification

Product Type
Indoor Termination Kit

Material
Polymeric/Heat Shrink Components

Capacity
3 Core x 185 Sqmm

Application
Indoor Termination of 11kV Power Cable

Out Coating
Non-Metallic / Heat Shrink

Standard
IS:13573 / IEEE / IEC Standards

Shape
Customized for Multicore Cable

Surface Treatment
Smooth, Heat Shrink Finish

Height
Suitable for 3C x 185sqmm Cable

Voltage
11 kV

Design
Pre-shaped for Indoor Application

Thickness
Designed for Relevant Cable Size

Color
Red / Black / Grey (Heat Shrink Parts)

Kit Contents
Heat Shrink Tubing, Stress Grading Tubes, Lugs, Earthing Accessories, Mastic, Cleaning Solvents

Operating Temperature Range
-40°C to +120°C

Usage
For XLPE/PVC Cable Termination

Dielectric Strength
>15 kV/mm

Installation Method
Heat Shrinkable, Easy Fit

Applicable Cable Types
3 Core, 185 Sqmm, 11kV Cable

Insulation Resistance
>1000 Mega Ohms

COMPAQ 11KV 3C*185SQMM INDOOR TERMINATION KIT Trade Information

Minimum Order Quantity
1 Number

Delivery Time
2 Days

About COMPAQ 11KV 3C*185SQMM INDOOR TERMINATION KIT

COMPAQ 11kV 3C 185sqmm Indoor Termination Kit (or equivalent 11 kV, 3-core, 185 sq mm indoor termination kit), including typical application, components and features. This should help for your technical documentation or project spec.

What is an Indoor Termination Kit and Where It's Used

A termination kit is used to end (terminate) a medium-voltage cable and connect it safely to switchgear, transformer terminals, or other electrical equipment in a manner that ensures insulation, mechanical protection, and safety.

This kit is designed for 11 kV systems and 3-core cables with conductor cross-section of 185 sq mm (XLPE / PILC or similar insulated cables).
It is intended for indoor use e.g. inside substations, indoor switchgear rooms, or other controlled environments.

Typical Components Inside the Kit

Based on standard 3-core 11 kV kits (and documentation from producers/manufacturers including similar kits) the termination kit for 3C 185 sq mm typically includes:

Component / Material	Purpose / Function

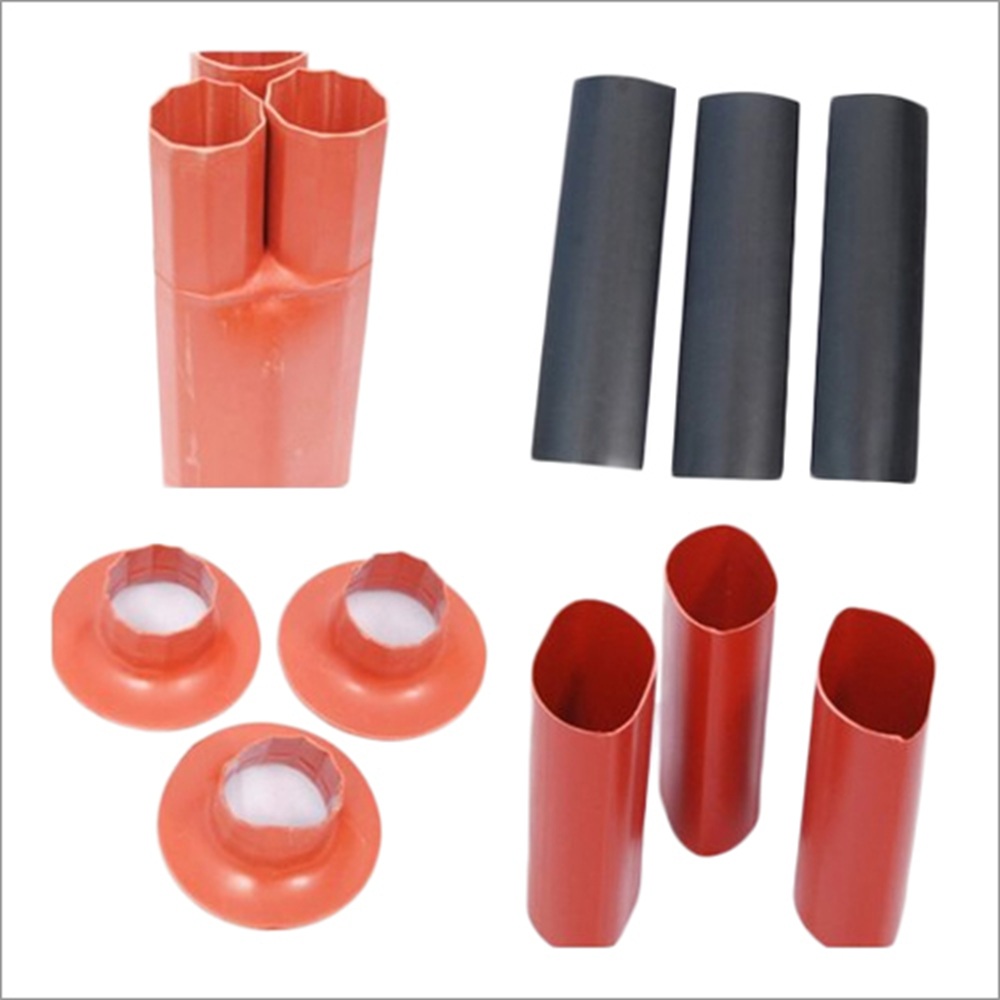

Heat-shrinkable outer jacketing sleeve (2 nos)	Provide outer insulation, mechanical protection & environmental sealing after termination.
Heat-shrinkable stress-control tubing (3 nos)	To control electrical stress at the cut end of the conductor insulation avoids partial discharge and ensures insulation integrity.
Heat-shrinkable insulating tubing (3 nos red or required colour)	Provide insulation over individual cores and phase separation.
Dual-wall tubing (red & black, where applicable)	Combines insulation with moisture sealing / environmental protection, where needed.
G.I. mesh and armour/metal-screen earthing arrangement (including copper braid, mesh tape, rings, clamps, binding wire, solder flux, etc.)	For earthing / screening / shielding of cable armour or metallic screen ensures proper grounding and safety.
Stress-control mastic / sealing compounds / tapes / PVC adhesive tape	For sealing joints, filling voids, ensuring moisture-proof insulation and preventing environmental ingress.
Connector / mechanical / bolted / crimp lugs or ferrules (as per conductor type: aluminium or copper)	To connect the cable conductor to the equipment terminal or busbar securely. Some kits use mechanical shear-bolt cable lugs for secure connection.
Installation instructions & cleaning materials (e.g. emery paper, cloth, cleaning tissue, grease)	For proper cable preparation, insulation cleaning, and installation quality.

Key Features & Benefits

Voltage rating: 11 kV medium-voltage suits typical distribution/substation cables.
Cable compatibility: 3-core, 185 sq mm XLPE (or suitable insulation) cables armour or screened cables are also manageable with earthing/screening provisions.
Insulation & stress control: Heat-shrink stress-control tubing and insulating sleeves ensure safe termination prevents partial discharge, flashovers, and enhances long-term reliability.
Moisture / environmental protection: Outer jacketing, sealing tapes, mastics protect against humidity, dust, moisture ingress (especially important if indoor environment is not climate-controlled).
Mechanical and electrical safety: Proper earthing of metallic screen/armour, secure lug/connector connection, strong insulating barrier ensures safety of equipment and personnel.
Ease of installation: Pre-engineered kit with all necessary materials; heat-shrink tubing allows reasonably quick installation (though requires correct procedure) compared to bespoke termination.

Important Considerations / What to Check Before Use

Make sure the cable type (XLPE, PILC, screened or armoured) matches kits specification. Not all kits may support all insulation/armour types.
Use correct lugs / connectors compatible with your cable conductor (copper or aluminium). Some kits are designed for mechanical shear-bolt lugs.
Ensure proper stress-control installation and cleaning / preparation of cable ends before applying shrink sleeves poor installation can lead to insulation failure or partial discharge.
For indoor application: ensure proper earthing/grounding if cable is screened or armoured, and maintain environment dryness (moisture ingress can degrade insulation over time).
Follow relevant standards / specifications (IEC / IS / relevant Indian grid norms) for 11 kV cable terminations.

Engineered for High-Performance Termination

This termination kit combines polymeric and heat shrink materials to ensure exceptional electrical insulation and durability. Its pre-shaped, easy-fit design simplifies installation for a range of indoor applications, while conforming to rigorous international standards. The smooth surface treatment and non-metallic coating add an extra layer of safety and reliability.

Adaptable Design for 3-Core 185 Sqmm Cables

Purpose-built for 3 core, 185 sqmm, 11kV cables, this kit includes carefully crafted components such as lugs and earthing accessories, ensuring a precise and secure fit. The shape and thickness are tailored for multicore cable termination, making it suitable for a wide range of power distribution requirements.

Comprehensive Kit Contents for Hassle-Free Installation

Each kit contains everything needed for a complete termination, including heat shrink tubing, stress grading materials, lugs, mastic, and cleaning solvents. This all-in-one approach minimizes onsite preparation, reduces installation time, and increases operational efficiency for power professionals.

FAQ's of COMPAQ 11KV 3C*185SQMM INDOOR TERMINATION KIT:

**Q: How do I install the COMPAQ 11KV 3C*185SQMM Indoor Termination Kit?**

A: The termination kit is installed using the heat shrink method. After preparing the cable ends, each kit component-such as stress grading tubes, mastic, and cleaning solvents-is sequentially applied according to the provided instructions. The heat shrink tubing is then heated, causing it to shrink tightly around the cable, ensuring a secure fit and reliable insulation.

Q: What types of cables is this termination kit suitable for?

A: This kit is specially designed for 3 core, 185 sqmm, 11kV XLPE or PVC insulated power cables, making it ideal for medium voltage indoor applications requiring high reliability and safety.

Q: When should I use an indoor termination kit like this one?

A: The kit should be applied for terminating three-core, 185 sqmm, 11kV power cables where protection from environmental elements, surge stress, and insulation faults is required-typically in substations, industrial plants, or any indoor electrical installation involving medium voltage power distribution.

**Q: Where can I purchase the COMPAQ 11KV 3C*185SQMM Indoor Termination Kit in India?**

A: These kits are available through authorized distributors, manufacturers, suppliers, and traders across India who specialize in electrical and power cable accessories. For large-scale projects, bulk purchasing options are usually offered as well.

Q: What is the main benefit of using this termination kit?

A: Key benefits include high insulation resistance, exceptional dielectric strength, and a user-friendly installation process. Its comprehensive kit contents ensure all necessary materials are included for safe, efficient, and standardized cable termination.

Q: What standards does the product comply with?

A: The kit is manufactured according to industry standards such as IS:13573, IEEE, and IEC, guaranteeing reliable performance, safety, and compatibility with modern power distribution systems.

Q: What is the expected operating temperature range for this kit?

A: The COMPAQ 11kV Indoor Termination Kit operates effectively in temperatures ranging from -40C to +120C, ensuring dependable performance under varying ambient indoor conditions.
